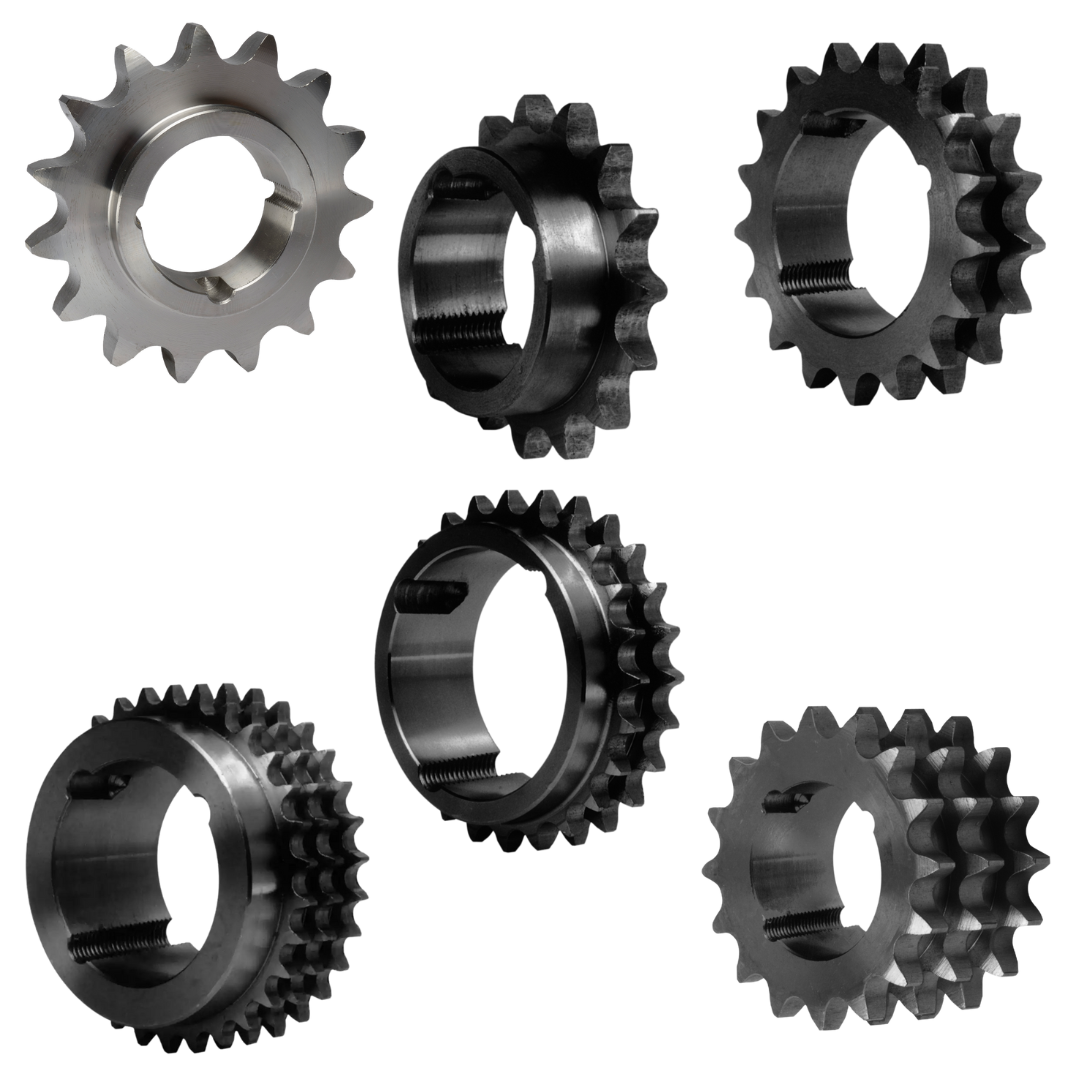

Sprockets with removable hub

Itafran offers you the set of ISO pinions with removable hub in steel and cast iron used in the creation of a reduction ratio or power transmission. This type of pinion must receive a removable conical hub to fix the pinion on your transmission shaft. Our removable hub sprockets are made of premium quality steel to obtain a very high hardness tooth system.

Filter by :

Reset all filters

Validate filters automatically

Toothing

Double

130

Single

162

Triple

Metric Pitch (mm)

9.52

12.7

15.8

19.05

25.4

31.75

38.1

Type

137

Vue en tableau

Grid view

Products only in stock

Reference		Stock France	Net price	Toothing	Standard	Metric Pitch (mm)	Imperial pitch (inch)	Number of teeth	Hub type	Type	Mass (Kg)
PGD09517M	Added	83 PCE	5,02 €	Double	06B2	9.52	3/8?	17	1008	2	0.1Kg
PGD09518M	Added	0	5,29 €	Double	06B2	9.52	3/8?	18	1008	2	0.125Kg
PGD09519M	Added	123 PCE	5,37 €	Double	06B2	9.52	3/8?	19	1008	2	0.2Kg
PGD09520M	Added	105 PCE	5,60 €	Double	06B2	9.52	3/8?	20	1008	2	0.2Kg
PGD09521M	Added	19 PCE	5,87 €	Double	06B2	9.52	3/8?	21	1008	2	0.3Kg
PGD09522M	Added	108 PCE	6,17 €	Double	06B2	9.52	3/8?	22	1108	2	0.3Kg
PGD09523M	Added	100 PCE	6,56 €	Double	06B2	9.52	3/8?	23	1210	2	0.3Kg
PGD09524M	Added	0	6,72 €	Double	06B2	9.52	3/8?	24	1210	2	0.35Kg
PGD09525M	Added	16 PCE	7,42 €	Double	06B2	9.52	3/8?	25	1210	2	0.4Kg
PGD09526M	Added	0	7,64 €	Double	06B2	9.52	3/8?	26	1210	2	0.4Kg
PGD09527M	Added	11 PCE	8,57 €	Double	06B2	9.52	3/8?	27	1210	2	0.5Kg
PGD09528M	Added	1 PCE	8,93 €	Double	06B2	9.52	3/8?	28	1210	2	0.6Kg
PGD09530M	Added	89 PCE	10,02 €	Double	06B2	9.52	3/8?	30	1210	2	0.7Kg
PGD09538M	Added	23 PCE	14,93 €	Double	06B2	9.52	3/8?	38	1610	2	1Kg
PGD09545M	Added	23 PCE	21,87 €	Double	06B2	9.52	3/8?	45	1610	2	1.6Kg
PGD09557M	Added	0	36,54 €	Double	06B2	9.52	3/8?	57	1610	2	2.51Kg
PGD09576M1610	Added	1 PCE	N.C	Double	06B2	9.52	3/8 In	76	1610		4Kg
PGD12714M	Added	1 PCE	13,44 €	Double	08B2	12.7	1/2?	14	1008	2	0.44Kg
PGD12715M	Added	25 PCE	5,78 €	Double	08B2	12.7	1/2?	15	1008	2	0.3Kg
PGD12716M	Added	4 PCE	6,14 €	Double	08B2	12.7	1/2?	16	1108	2	0.3Kg
PGD12717M	Added	36 PCE	7,10 €	Double	08B2	12.7	1/2?	17	1210	2	0.5Kg
PGD12718M	Added	106 PCE	7,32 €	Double	08B2	12.7	1/2?	18	1210	2	0.55Kg
PGD12719M	Added	135 PCE	8,30 €	Double	08B2	12.7	1/2?	19	1210	2	0.6Kg
PGD12720M	Added	32 PCE	9,10 €	Double	08B2	12.7	1/2?	20	1610	2	0.75Kg
PGD12721M	Added	29 PCE	9,90 €	Double	08B2	12.7	1/2?	21	1610	2	0.9Kg
PGD12722M	Added	32 PCE	10,02 €	Double	08B2	12.7	1/2?	22	1610	2	0.95Kg
PGD12723M	Added	34 PCE	10,83 €	Double	08B2	12.7	1/2?	23	1610	2	1Kg
PGD12724M	Added	31 PCE	14,03 €	Double	08B2	12.7	1/2?	24	2012	2	0.6Kg
PGD12725M	Added	27 PCE	14,08 €	Double	08B2	12.7	1/2?	25	2012	2	1.15Kg
PGD12726M	Added	41 PCE	15,05 €	Double	08B2	12.7	1/2?	26	2012	2	1.3Kg

0-30 sur 360
