Guides for round belts

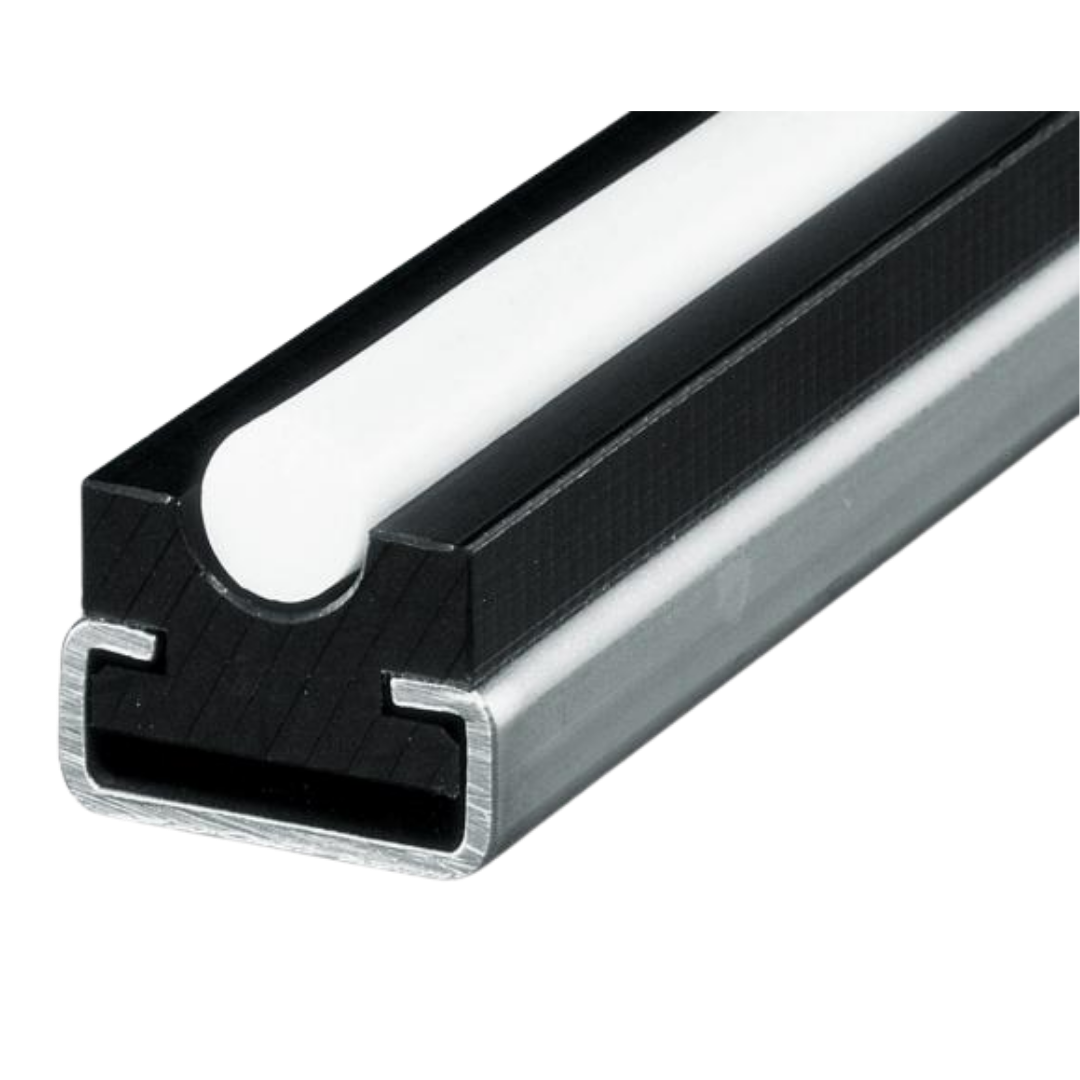

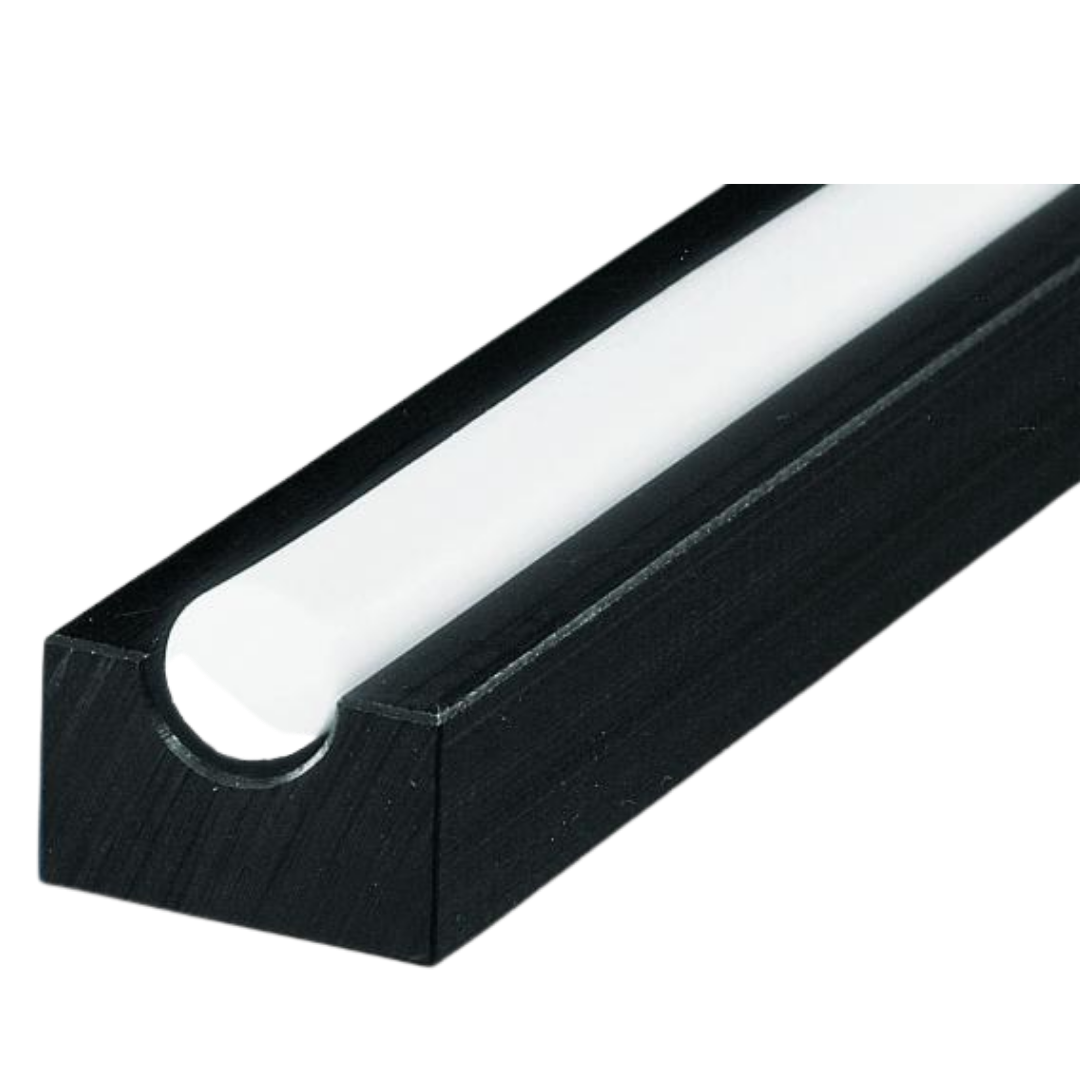

Round belt guides keep round belts aligned during operation to reduce friction and noise, improve traction and extend belt life. They have semi-circular channels and improve load distribution in conveyor systems that support heavy products, travel long distances or traverse inclines.

Filter by :

Reset all filters

Validate filters automatically

Type of rails

A (mm)

H (mm)

Vue en tableau

Grid view

Products only in stock

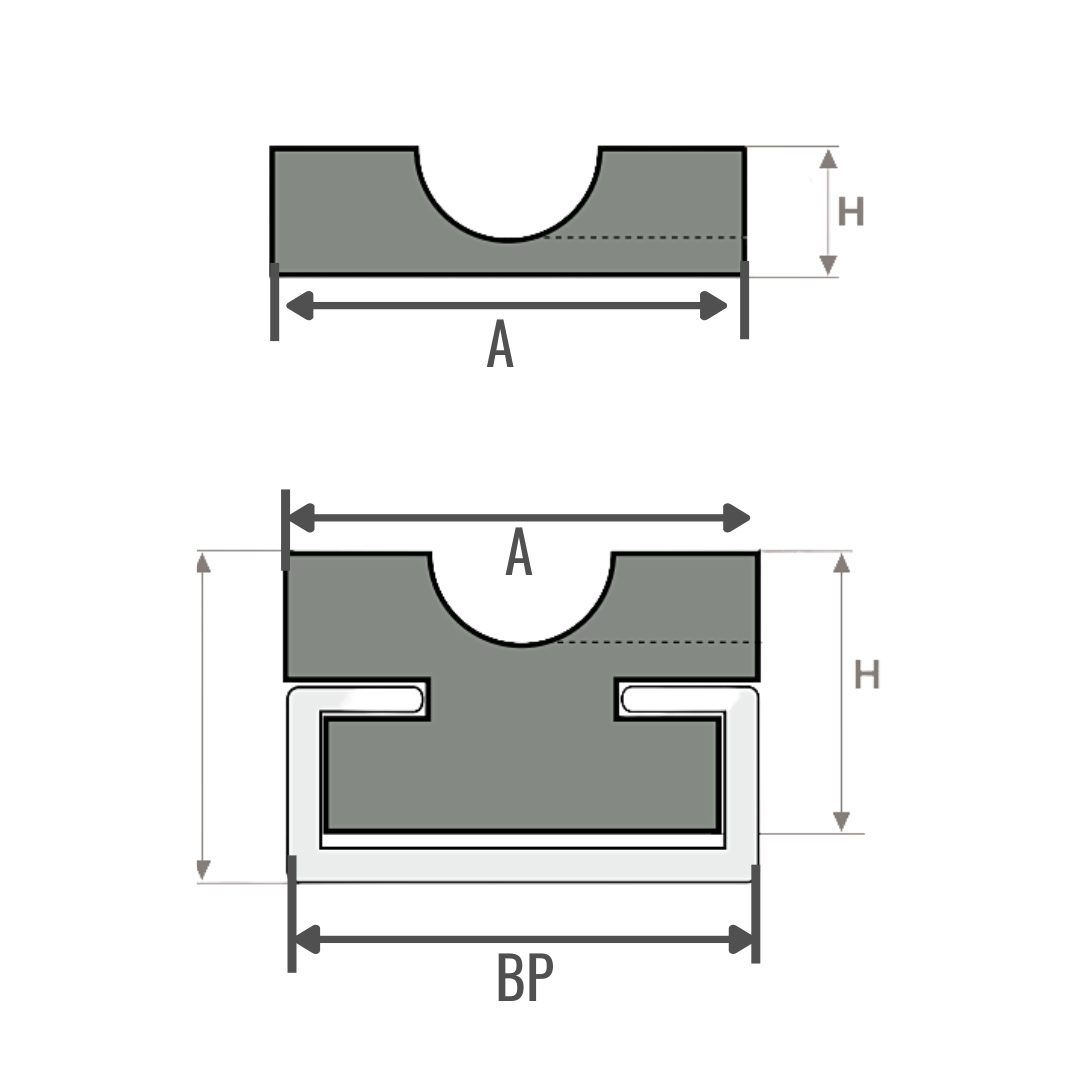

Reference		Stock France	Net price	Section	Type of rails	A (mm)	H (mm)	Mass (Kg)
CR05R	Added	4 ML	24,95 €	5	C2	20	10	0.14Kg
CR08R	Added	0	26,30 €	8	C2	20	15	0.14Kg
CR10	Added	4 ML	23,30 €	10		25	15	0.3Kg
CR10R	Added	4 ML	28,96 €	10	C3			0.26Kg
CR12R	Added	110 ML	29,96 €	12	C3	28	15	0.25Kg
CR18	Added	52 ML	32,95 €	18		40	25	0.78Kg
CR18R	Added	8 ML	35,94 €	18	C5	38	20	0.42Kg
GC-CR10	Added	0	17,85 €	10		25	12	0.35Kg
GC-CR12	Added	0	17,85 €	12		25	12	0.34Kg
GC-CR15	Added	0	20,92 €	15		25	15	0.34Kg
GC-CR18	Added	0	29,54 €	18		30	20	0.32Kg
GC-CR20	Added	0	29,54 €	20		30	20	0.32Kg
GC-CR4	Added	8 PCE	12,93 €	4		15	10	0.36Kg
GC-CR5	Added	0	12,30 €	5		15	10	0.36Kg
GC-CR6	Added	0	14,15 €	6		20	10	0.36Kg
GC-CR7	Added	0	14,15 €	7		20	10	0.35Kg
GC-CR8	Added	0	14,15 €	8		20	10	0.35Kg
GC-CRR10	Added	0	20,92 €	10	C5	25	15	0.35Kg
GC-CRR12	Added	0	20,92 €	12	C5	25	15	0.34Kg
GC-CRR15	Added	0	20,92 €	15	C5	25	15	0.34Kg
GC-CRR18	Added	0	28,31 €	18	C5	28	20	0.32Kg
GC-CRR20	Added	0	28,31 €	20	C5	28	20	0.32Kg
GC-CRR4	Added	0	14,77 €	4	C3	20	10	0.36Kg
GC-CRR5	Added	0	14,15 €	5	C3	20	10	0.36Kg
GC-CRR6	Added	0	14,15 €	6	C3	20	10	0.36Kg
GC-CRR7	Added	0	14,15 €	7	C3	20	10	0.35Kg
GC-CRR8	Added	0	14,15 €	8	C3	20	10	0.35Kg

0-27 sur 27
