Pendulum gearboxes, SMSRD13AL040
_ad77d1cf_cropped_456_456_v1670834532.jpg)
Description

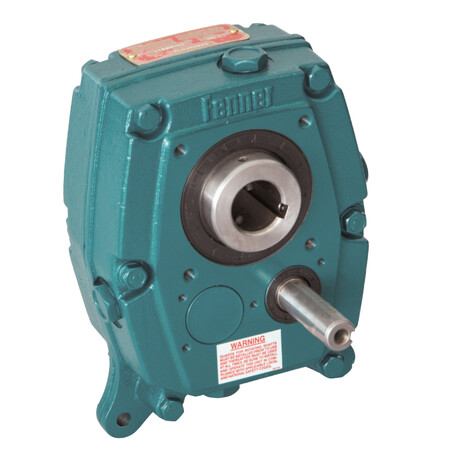

Pendulum gearboxes, reference SMSRD13AL040, This reducer type Al. 40 + RCN, D has a ratio of 13.
Product details
Product details

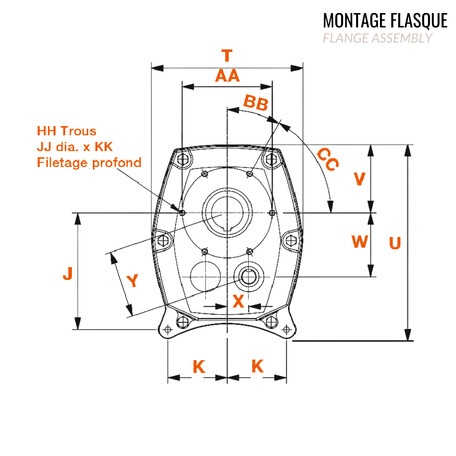

| A1 (mm) | 170 |
| C (mm) | 82 |
| D (mm) | 93 |
| E (mm) | 92 |
| E1 (mm) | 75 |
| F (mm) | 22 |
| G (mm) | 17 |
| G1 (mm) | 7 |
| G2 (mm) | 36 |
| H (mm) | 127 |
| J (mm) | 169 |
| K (mm) | 84 |
| M (mm) | 24 |
| N (mm) | 75 |
| O (mm) | 8 |
| P (mm) | 13 |
| Q (mm) | 216 |
| R (mm) | 350 |
| T (mm) | 218 |
| U (mm) | 282 |
| V (mm) | 96 |
| W (mm) | 90 |
| X (mm) | 31 |
| Y (mm) | 95 |
| AA (mm) | 135 |
| BB (mm) | 45 |
| CC (mm) | 90 |
| DD (mm) | 0 |
| EE (mm) | 0 |
| FF (mm) | 0 |
| GG (mm) | 0 |
| JJ (mm) | 13 |
| HH (mm) | 4 |
