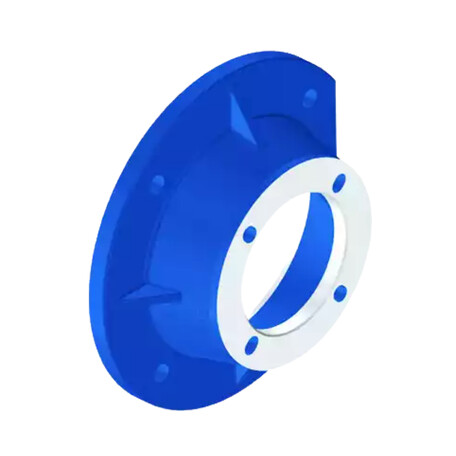

Outlet flanges, RV-BRS050FAC
Description
Outlet flanges, reference RV-BRS050FAC, size 50.
Product details
Product details

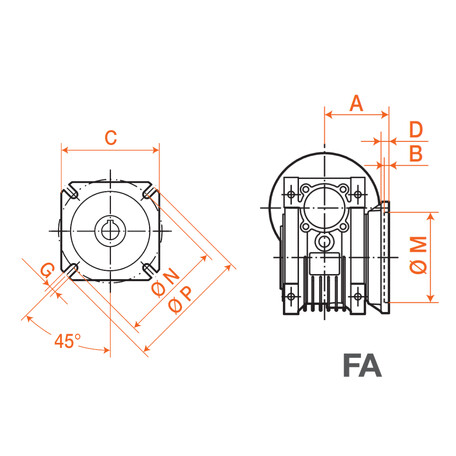

| A (mm) | 90 |
| B (mm) | 5 |
| C (mm) | 110 |
| D (mm) | 9 |
| P (mm) | 125 |
| N (mm) | 85 |
| M (mm) | 70 |
| G (mm) | 11 |
