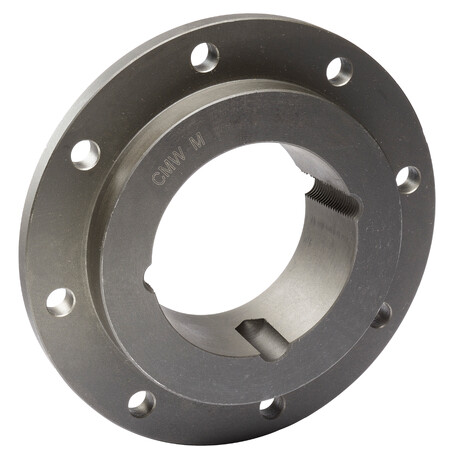

Bolt-on plate with plain holes, PB2012
Description
Bolt-on plate with plain holes, reference PB2012 for removable hub {ARTICLE_TYPEMOYEUX} series with an outer diameter of 145mm.
Product details

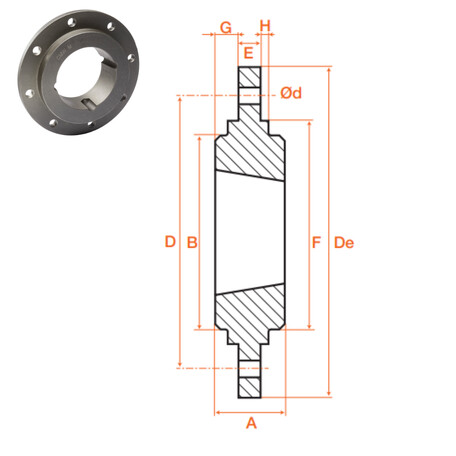

Product details
| De (mm) | 145 |
| D (mm) | 125 |
| F (mm) | 115 |
| B (mm) | 110 |
| G (mm) | 12 |
| E (mm) | 8 |
| H (mm) | 2.5 |
| Ø Screw | 6 x 9.5 |
