Cylindrical gears, ENGM10040
Description

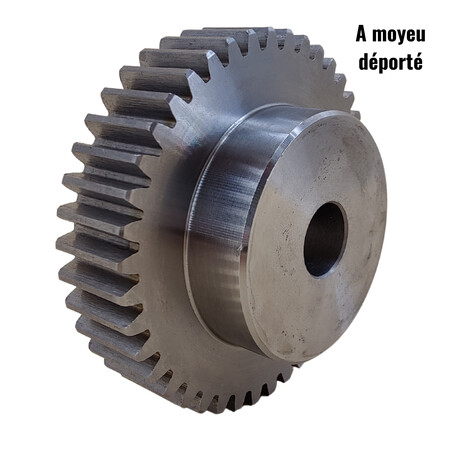

Cylindrical gears - Offset hub, reference ENGM10040, module 1 with 40 teeth.
Product details
Product details

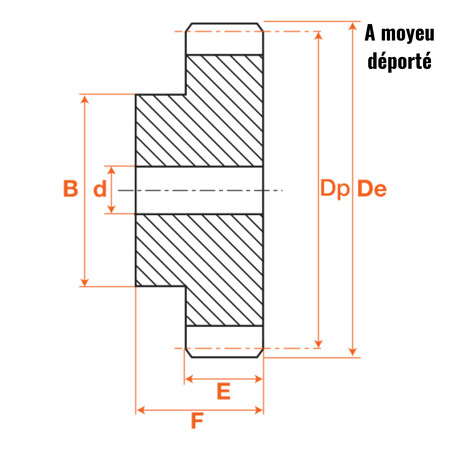

| Dp (mm) | 40 |
| De (mm) | 42 |
| B (mm) | 25 |
| Inside diam. (mm) | 10 |
| E (mm) | 15 |
| F (mm) | 25 |
